Dual-Band 2976Mbs Wifi External Signal Amplifier

specification:

CPU	IPQ8071A 4Core A53 1GHz CPU
Red aceleración del motor	Dual core 1,7 GHz NPU
ROM	256MB
Memoria	512MB
2,4G Wi-Fi	2×2 (IEEE802.11ax 574Mbps)
5G Wi-Fi	4×4 (IEEE802.11ax 2402Mbps)
Antena	6 antenas externas de alta ganancia + 1 antena AloT
Disipación de calor	Natural de disipación de calor
De la interfaz física	110/100/1000 WAN (Auto MDI/ MDIX) 310/100/1000 LAN (Auto MDI/ MDIX)
Luz indicadora de led	1 * Los indicadores del sistema 1 * INTERNET indicadores 4 * puertos de red 1 * AIoT Luz
Botón de Reinicio	1 * botón de Reinicio
Entrada de alimentación de interfaz	1 * interfaz de entrada de energía
Estándar inalámbrico	IEEE 802.11a/b/g/n/ac/Hacha IEEE802.3/3u/3ab
Las normas de certificación	GB/T9254-2008; GB4943.1-2011
De banda Dual	2,4 GHz, 5GHz
Canal inalámbrico	Canal de 2,4 GHz: 1,2,3,4,5,6,7,8,9,10,11,12,13 Canal de 5GHz: 36,40,44,48, 149.153.157.161.165
Modo de modulación	11b: DSSS: DBPSK(1Mbps) DQPSK (2Mbps) CCK (5,5/11Mbps) 11a/g: OFDM: BPSK (6/9Mbps) QPSK (12/18Mbps) 16QAM(24/36Mbps) 64QAM(48/54Mbps). ¡11n: MIMO-OFDM: BPSK… QPSK… 16QAM… 64QAM! Conjunto de velocidad: MCS0 ~ MCS15 ¡11ac: MIMO-OFDM: BPSK… QPSK… 16QAM… 64QAM… 256QAM! Conjunto de velocidad: ~ MCS9 MCS0 (4 streams compatibles) ¡11ax: MIMI-OFDM: BPSK… QPSK… 16QAM… 64QAM… 256QAM… 1024QAM! Conjunto de velocidad: ~ MCS11 MCS0 (4 streams compatibles)
Sistema operativo	Sistema operativo enrutador inteligente MiWiFi ROM basado en la personalización profunda de OpenWRT
De seguridad inalámbrica	Cifrado de WPA-PSK / WPA2-PSK/ WPA3-SAE, control de acceso inalámbrico (lista en blanco y negro), SSID oculto, red inteligente antiarañazos
APLICACIÓN DE GESTIÓN DE	Web de soporte Android y iOS.
Ambiente de Trabajo	Temperatura de funcionamiento: 0 ~ 40 °C
	Temperatura de almacenamiento: 10% ~ 90% RH sin condensación
	Humedad de funcionamiento: -40 ~ 70 ℃
	Humedad de almacenamiento: 5% ~ 90% RH sin condensación

* Qualcomm 6-core enterprise-grade professional chip

* Dual-core network acceleration engine

* Wi-Fi rate increased to 3000M

* 6 high-performance external signal amplifier signals

* 512MB large memory, support up to 248 devices connected at the same time

* Smart AIoT antenna, OFDMA technology, MU-MIMO technology

* BSS Coloring technology greatly improves the ability to resist Wi-Fi interference from neighbors

* WPA3 secure encryption protocol to protect the data security of the home network

* Support beamforming technology, directional enhanced signal

* Super heat dissipation to ensure stable operation

Comparison of Wi-Fi 6 and Wi-Fi 5

Wi-Fi 6 (802.11ax) is a new generation of Wi-Fi standard, which has greatly improved the transmission rate,

signal coverage and data delay compared to the previous generation Wi-Fi5 (802.11ac).

Qualcomm 6-core enterprise-grade professional chip

Equipped with Qualcomm’s 4-core 64-bit A53 CPU + 2-core network acceleration engine,

the enterprise-level professional chip IPQ8071A,
its DMIPS capability

is much stronger than other router manufacturers’ chip solutions of the same rate specification,

with stronger processing power and more stable operation.

Dual-core network acceleration engine

IPO8071A is also equipped with a dual-core 1.7GHz network acceleration engine (NPU).

Its unique design is specifically designed to handle network traffic,

so that the CPU can focus on other upper-layer applications.

Network traffic processing speed has been greatly improved. Tookfun

Wi-Fi rate increased to 3000M

Provide two frequency bands of 2.4GHz and 5GHz, both of which support 802.11ax technology

and do not interfere with each other, dual-band concurrent wireless rate up to 2976Mbps

* 2.4GHz band transmits farther, has better coverage, and has better wall penetration performance

* The 5GHz band has less interference and a high rate, making it smoother to watch high-definition videos

and play large-scale online games.
Tookfun

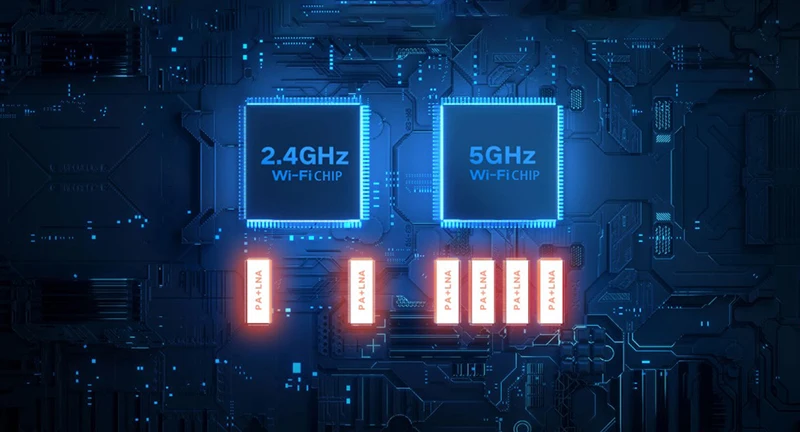

6 high-performance external signal amplifier signals

2.4GHz band and 5GHz band are equipped with 2 and 4 external high-performance signal amplifiers (PA + LNA).

PA (power amplifier) effectively enhances the signal transmission power,

making the signal transmitted by the router farther and stronger .
LNA (low noise amplifier) can improve

the signal receiving sensitivity, so that the router can receive farther and weaker signals

512MB large memory, support up to 248 devices connected at the same time

Smart AIoT antenna

Equipped with a unique AIoT smart antenna, you can automatically discover the uninitialized

Xiaomi smart devices around you by opening the Mijia App

OFDMA technology

It allows the AX3600 to send data to multiple terminal devices with only one transmission

(up to 8 terminal devices “).

OFDMA allows the transmission efficiency of multiple devices to work simultaneously to be significantly improved,

and the delay is significantly reduced.

MU-MIMO technology

Allow multiple antennas of the router to serve multiple devices at the same time,

so that each device has a high-priority treatment,

and will not slow down the experience of other devices because of a low-speed device,

making the Internet more smooth

BSS Coloring technology greatly improves the ability to resist Wi-Fi interference from neighbors

WPA3 secure encryption protocol to protect the data security of the home network

Support beamforming technology, directional enhanced signal

Dual frequency in one

Xiaomi’s AIoT router AX3600 supports dual-band integration,

combining the 2.4GHz and 5GHz bands into a Wi-Fi name.

Dual-band terminals can choose the appropriate frequency band to access according to the current environment

Super heat dissipation to ensure stable operation

The fuselage adopts large-area aluminum alloy heat sink and high thermal conductivity thermal adhesive.

The top, bottom and sides of the fuselage have heat dissipation holes for heat dissipation.

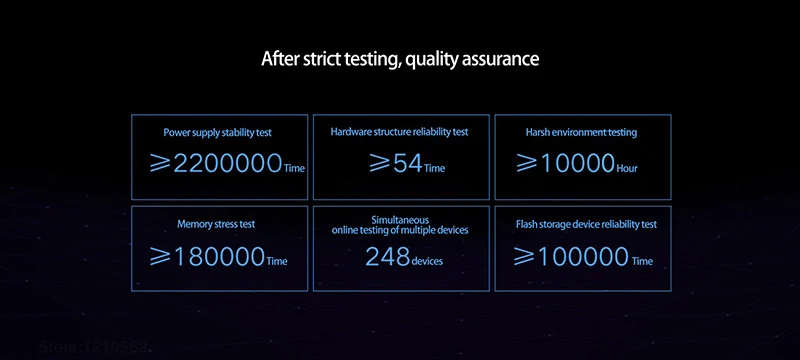

Cooperation with international authoritative test instrument manufacturers

By cooperating with international authoritative test instrument manufacturers such as Spirent and Ixia,

large-scale testing is carried out to simulate the performance of routers in home scenarios

and extreme conditions to ensure the stable operation of routers under various conditions.

Parcel list

AX3600 router / Instructions / power cable / cable

Additional information

Brand Name	Xiaomi
With Modem Function	No
Type	Wireless
Wired Transfer Rate	10/100/1000Mbps
WAN Ports	1 x10/100/1000Mbps
Number of USB Interfaces	None
Wi-Fi Supported Frequency	2.4G & 5G
5G Wi-Fi Transmission Rate	433Mbps
Package	Yes
Supports WDS	No
Max. LAN Data Rate	1900Mbps
Model Number	Xiaomi AX3600
Standards And Protocols	Wi-Fi 802.11g
Wi-Fi Transmission Standard	802.11n
2.4G Wi-Fi Transmission Rate	450 Mbps
LAN Ports	4
Supports WPS	No
Function	Firewall
Application	Enterprise
Product Size	410177134 mm
processor	IPQ8071A 4-core A53 1GHz CPU
RAM	521MB
Product cooling	Natural heat dissipation
Management application	Web, Android, iOS
Function 1	3000 Mbit wireless rate
Function 2	6 high-performance external signal amplifiers
Function 3	OFDMA + MU-MIMO
Function 5	AIoT smart antenna
Function 4	Full terminal game acceleration
Function 6	WPA3 network encryption
Function 7	Support PPPOE and DHCP and static IP Internet access
